5-axis vertical machining center:

This 3 to 5-axis vertical CNC machining center is designed to offer exceptional precision and versatility in machining steels and other metals. Its robust cast steel structure, combined with servomotors and 30 mm ball screws, ensures optimal rigidity and high repeatability. The automatic tool changer and 12-tool carousel significantly increase productivity, while full enclosures ensure a clean and safe working environment.

5-axis CNC machining center for steels and other metals
Machine with cast steel table, frame, and structure
Moving table for Y-axis
Steel table with T-slots
Full machine enclosures with sliding doors
Mechanical spindle
Automatic tool change
12-tool carousel
BT40 tool holders
Collet chuck for ER-type tool clamping
Spindle liquid cooling
Coolant jets
Stainless steel coolant recovery tank
Servomotors on all 3 axes
X, Y, and Z axis drive by 30 mm ball screws
Linear guide rails on X, Y, and Z axes
Lubrication of all rails and ball screws
Electromagnetic sensor for automatic origin setting
Automatic tool probe
Cutting tool set
Power supply: three-phase 400 V

Also discover the M series CNC milling machine, the L series wood milling machine, and the 5-axis gantry milling machine.

Additional options available:

Chip evacuation
Internal spindle cooling
4th rotary axis for 3D part manufacturing
4th axis spindle orientation ±90°
5th rotary axis for 3D part manufacturing
5th axis spindle orientation ±90°

In addition, all custom options and modifications, as well as our services, can be added.

Key features of this 5-axis vertical machining center:

Precision and user-friendly 5-axis vertical CNC machining center with numerous customization possibilities.
Designed and built for intensive professional use.
Particularly suitable for mechanics.
Equipment with mobile table, useful format from 400 x 400 x 400 mm up to 2000 x 4000 x 1000 mm for special designs.
Control panel from major brands of your choice (Siemens, Fanuc, Heidenhain, Fagor…).
CNC numerical controls operating in ISO code (G-code and M-code).
Quality kinematics integrating industrial components supplied by world leaders in their field, mounted on cast steel frames.
Industry-specific options adapted to current customer needs in each sector of activity.

Some usable materials:

(depending on the chosen electrospindle and tool)

Steels
Stainless steel
Aluminum
Aluminum or copper-based alloys
Stones, marble, granite, etc.
Composite materials for construction
Composite materials for industry (polyester resin charged with fiberglass, carbon fiber…)
Wood and derivatives
Plastics and derivatives

Some components of this 5-axis vertical machining center:

ROBUST STRUCTURE

The structure of this vertical machining center is made of cast steel to ensure extreme robustness. The rigidity of the entire frame guarantees the best machining tolerances for perfect precision.

Automatic tool changer

Carousel magazine with 8 to 32 BT40-type tool holders. The automatic tool change will accelerate your production rate by eliminating tool change downtime.

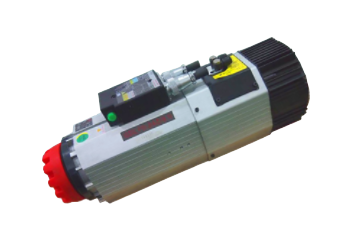

7.5 kW mechanical spindle

A mechanical spindle with a nominal speed of 8,000 rpm with a liquid cooling system. Coupled with a three-phase motor with a power of 7.5 kW to 15 kW to ensure optimal tool torque for better cutting according to your needs.

Guide rails

Guide rails installed and fixed on the frame with 3 x 2 horizontal carriages to ensure the necessary support for the rigidity of your milling machine. The carriages are equipped with patented high-performance automatic lubrication systems allowing optimal gliding and extended lifespan.

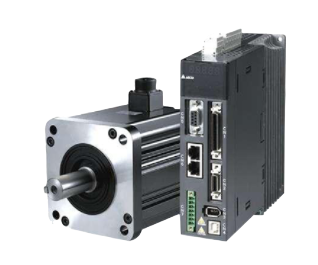

Servomotors

Faster and more precise than stepper motors, servomotors are capable of performing your machining operations on large work dimensions without stalling. Their high torque allows for high feed rates during operation. Their operation also reduces vibrations and prevents deviations during cutting while extending the lifespan of your machine.

3 to 5-axis Vertical Machining Center for Metals
