L-series cnc router

Category:

Description

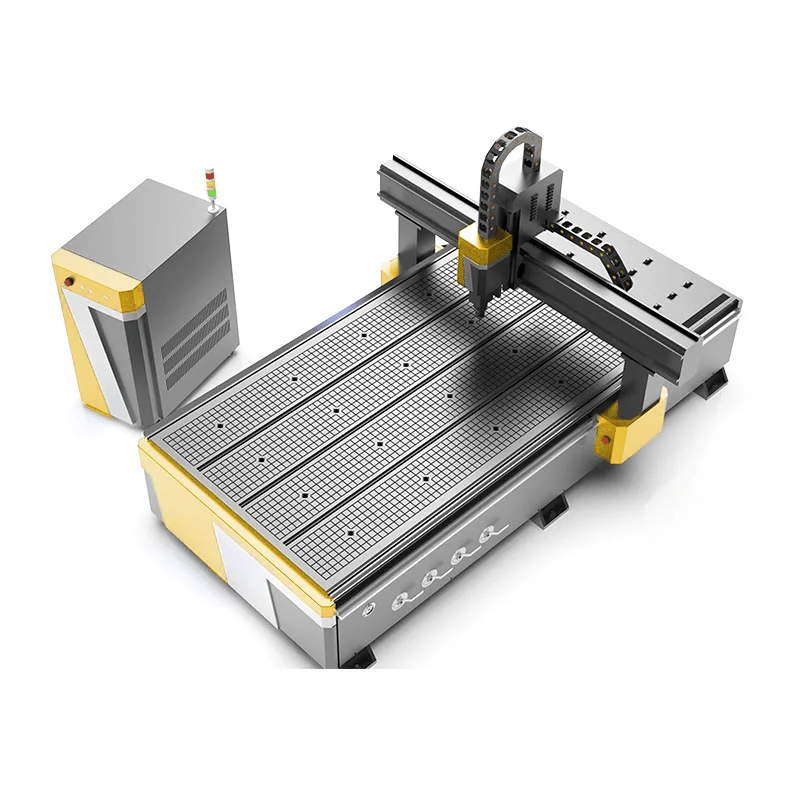

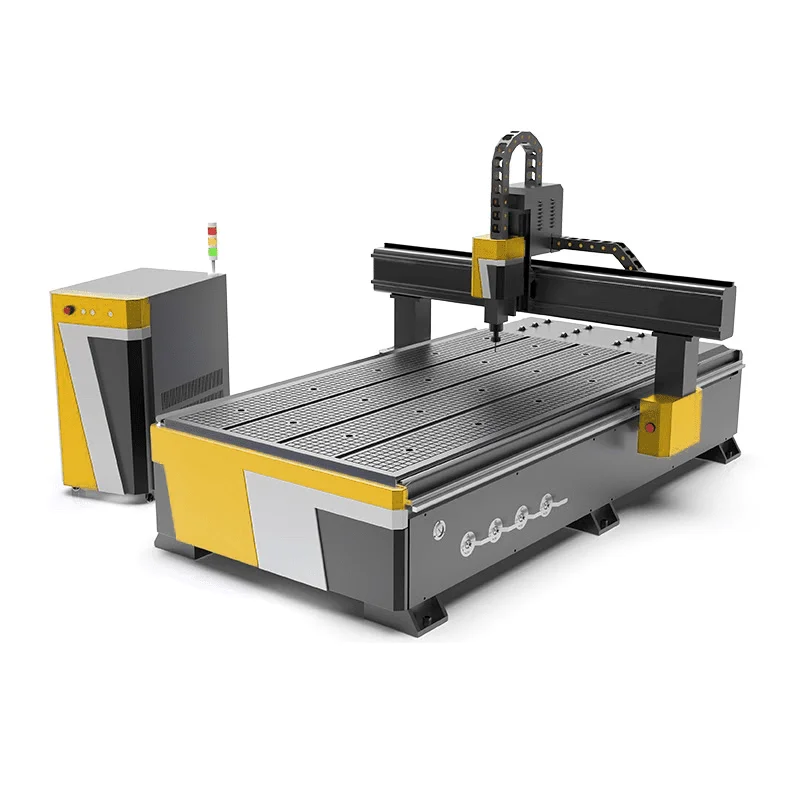

Wood and metal CNC router:

  • Machine with table, gantry and 8mm steel frame
  • Mechanical-welded structure
  • Stepper Motorization or Servo Motors
  • 3.5-9kW spindle with cooling system
  • Collet chuck for clamping tools type ER25 to ER32
  • Table with T-slots for fixing your parts
  • 25mm prismatic linear guide rails in X, Y and Z axes
  • X, Y axis drive by rack and pinion
  • Z-axis ball screw drive
  • Z tool probe to automatically calibrate your tool height
  • Choice of power supply: single-phase 220V or three-phase 400V

Additional options available:

  • Auto Tool Changer
  • Vacuum table to hold your parts without clamping
  • 5.5kW to 15kW pump with filter and suction system for downdraft table
  • Vacuum and chip collector
  • Servos on all 3 axes
  • Control interface with joystick
  • Parts lubrication system with cutting oil
  • 4th rotary axis for manufacturing parts by rotation
To this can be added all the options and custom modifications as well as our services.

The strengths of this wood and metal CNC router:

  • Precise and easy-to-use CNC router with many customization possibilities.
  • Designed and manufactured for intensive professional use.
  • Particularly suitable for carpenters and cabinetmakers. Also used in the aeronautics, plastics and composites, precision mechanics, aluminum processing and advertising sectors…
  • Equipment with fixed table in usable format 1300×2500 mm up to 2000×4000 mm as standard and available in special execution.
  • Innovative and efficient vacuum plates with vacuum pump technology.
  • CNC numerical controls operating in ISO code (G-code and M-code).
  • Quality kinematics incorporating industrial components supplied by world leaders in their field, mounted on mechanically welded and stabilized steel frames.
  • Business options adapted to the current needs of customers in each business sector.

Some of the materials that can be used:​

(depending on the electrospindle and the chosen tool)

  • Plastics in rigid sheets (PMMA-PC-PS-PVC-ABS..)
  • Expanded plastics and alveolar sheets
  • Rigid foams (PU-PS-…)
  • Semi-rigid foams
  • Composite materials for building
  • Composite materials for industry (fiberglass-filled polyester resin, carbon fiber, etc.)
  • Wood and derivatives
  • Polyester resins
  • Aluminium-based or copper-based light alloys
  • In engraving only: Soft stones, marble, granite etc…

Some components of this wood and metal CNC router:​

Linear tool magazine

Magazine for 8 of ISO30 type tool holders. Automatic tool changing will speed up your production rate by avoiding tool change downtime. Also available in version of 10, 12, 16 or 24 tool holders and in carousel.

Magasin porte-outils fraiseuse cnc router cnc ATC changeur d'outil automatique commande numérique LUQUE Machines
Broche fraiseuse cnc router cnc ATC changeur d'outil automatique commande numérique LUQUE Machines

Spindle from 3.5 to 9 kW with optional automatic tool changer

A 3.5 to 9 kW spindle with air cooling system to ensure optimal tool torque for better cutting. Smooth body surface to prevent corrosion. Its simple and rational design gives it power and reliability.

25mm Prismatic Guide Rails

25mm prismatic guide rails placed and fixed on the frame with 2 x 2 horizontal carriages to support the entire weight of the bridge and ensure the support necessary for the rigidity of your milling machine. The carriages are equipped with patented high-performance automatic lubrication systems allowing optimal sliding and extended life.

rail de guidage prismatique HIWIN
Servomoteur pilote DELTA ou YASKAWA fraiseuse cnc router cnc commande numérique LUQUE Machines

Servo motors

Faster and more precise than stepper motors, servo motors are able to carry out your machining operations on large working dimensions without stalling. Their high torque allows them to have a high speed of advance in work. Their operation also reduces vibrations and avoids deviations during the cut while extending the life of your machine.

Table suction system 5.5 to 15 kW

Your parts are held by suction on the table thanks to our pump system. No more need to clamp your parts with clamps, your production rate will be accelerated. Exists from 5.5 to 15 kW of power and in a double stage version for better holding of parts on small surfaces.

Système d'aspiration pompe à vide table aspirante fraiseuse cnc router cnc commande numérique LUQUE Machines
